Sunshade Illuminated Mirror Lamp Bulb Replacement

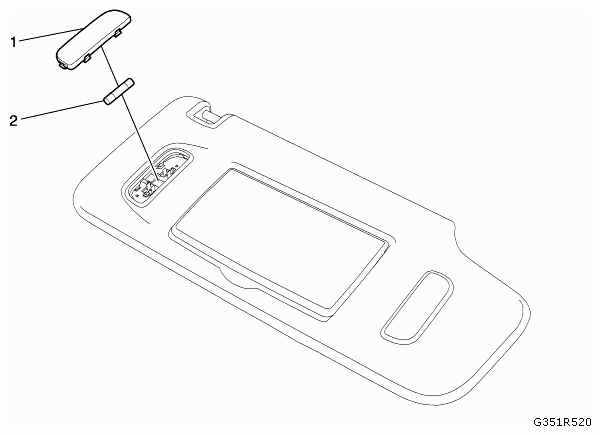

Fig 1: Identifying Sunshade Illuminated Mirror Lamp Lens And Bulb
G09435174Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
1 Sunshade Illuminated Mirror Lamp Lens
NOTE: Carefully use a flat-bladed tool, to release the Sunshade Illuminated Mirror Lamp Lens
2 Sunshade Illuminated Mirror Lamp Bulb
