Rear License Plate Bulb, Replacement 4D

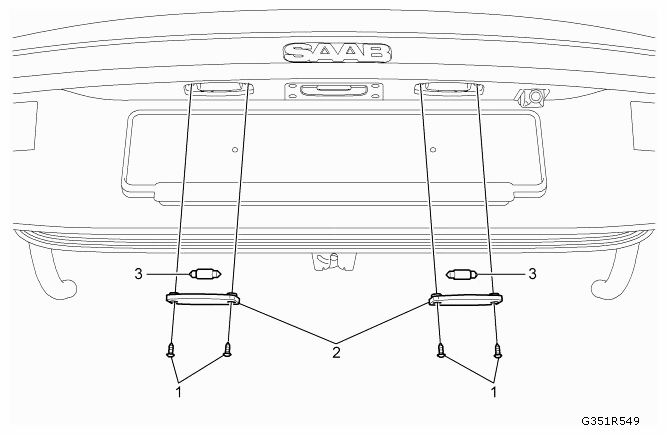

Fig 1: Identifying Rear License Plate Lamp, Bulb And Fasteners

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
1	Rear License Plate Lamp Fastener (Qty: 4) Refer to FASTENER CAUTION .
2	Rear License Plate Lamp
3	Rear License Lamp Bulb See AVOID TOUCHING THE BULB CAUTION . NOTE: Service the bulb, as needed.
