Headlamp Leveling Front Suspension Height Sensor Exciter Plate Replacement

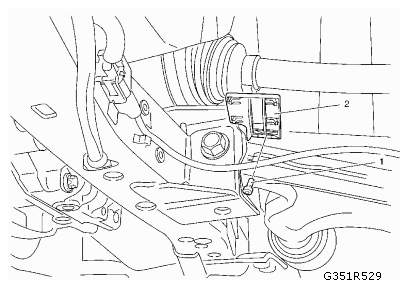

Fig 1: Identifying Headlamp Leveling Front Suspension Height Sensor Exciter Plate And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
1	Headlamp Leveling Front Suspension Height Sensor Exciter Plate Fastener Refer to FASTENER CAUTION . Tighten  2.5 Nm (25 lb in)
2	Headlamp Leveling Front Suspension Height Sensor Exciter Plate Procedure  Set up and program the headlamp control module. Refer to CONTROL MODULE REFERENCES .
