Headlamp Bulb Replacement (Xenon - Left Side)

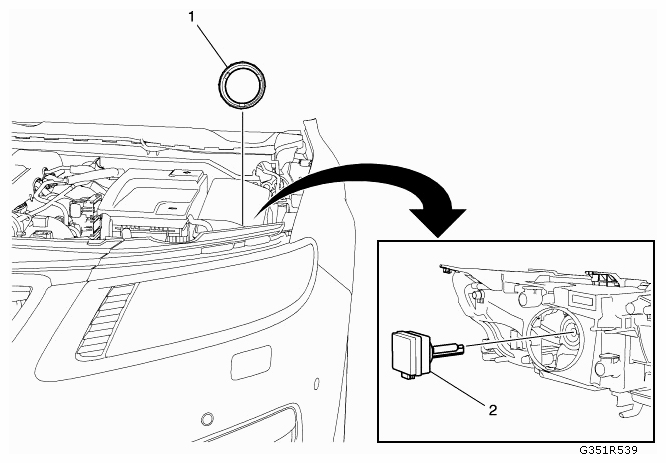

Fig 1: Identifying Headlamp Bulb Accessory Cover And Xenon Headlamp Bulb

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
WARNING: The high intensity discharge system produces high voltage and current. In order to reduce the risk of severe shocks and burns, the battery negative cable must be disconnected any time service work is being performed on or around the high intensity discharge system. WARNING: The high intensity discharge system produces high voltage and current. To reduce the risk of severe shocks and burns: Never open the high intensity discharge system ballast or the arc tube assembly starter. Never probe between the high intensity discharge system ballast output connector and the arc tube assembly. Preliminary Procedure  Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION . Remove the windshield washer solvent container filler tube. Refer to WINDSHIELD WASHER SOLVENT CONTAINER FILLER TUBE REPLACEMENT .
1	Headlamp Bulb Accessory Cover
2	Xenon Headlamp Bulb Procedure  Disconnect the electrical connector from the xenon component. Rotate the xenon component counter clockwise and remove it.
