Front Side Marker Lamp Bulb Replacement

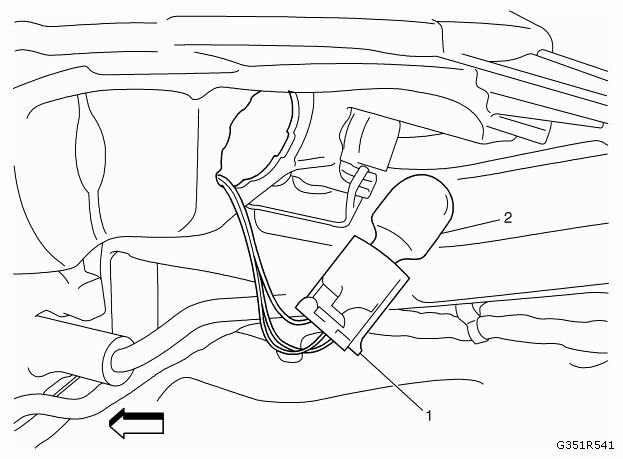

Fig 1: Identifying Front Side Marker Lamp Bulb And Socket Bracket

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the front side marker lamp bulb dust cover.
1	Front Side Marker Bulb Socket Bracket Procedure  Clip out the bulb socket bracket.
2	Front Side Marker Lamp Bulb Refer to HALOGEN BULB WARNING . Procedure  Remove the bulb from the lamp socket.
