Front Side Door Sill Courtesy Lamp Replacement

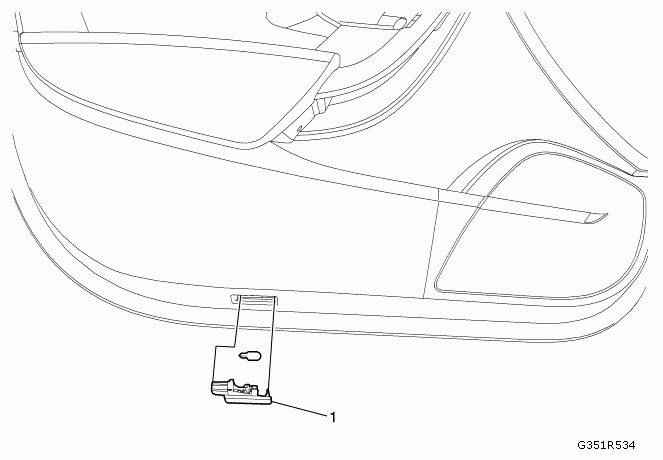

Fig 1: Identifying Front Side Door Sill Courtesy Lamp
G09435176Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
1 Front Side Door Sill Courtesy Lamp
Procedure
Disconnect the front side door sill courtesy lamp electrical connector.
NOTE: Use a small flat-bladed tool to pull the right side down out from the front side door trim panel opening.
