Front Side Door Courtesy Lamp Lens Replacement

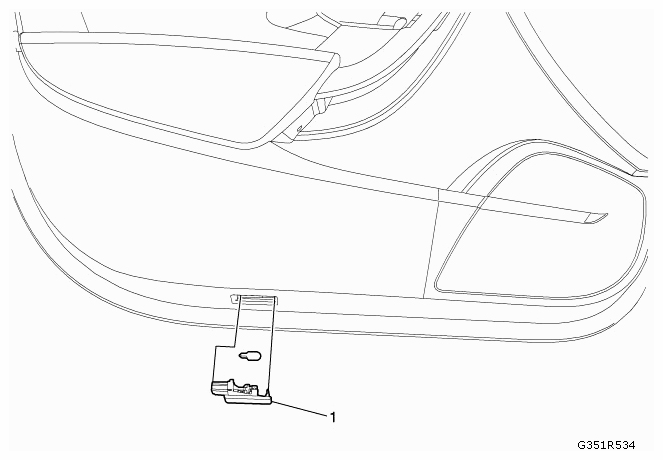

Fig 1: Identifying Front Side Door Courtesy Lamp Lens
G09435171Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
1 Front Side Door Courtesy Lamp Lens
Procedure
  1. Release and pull off the front side door courtesy lamp lens.
  2. Disconnect the electrical connector.
NOTE: Carefully use a flat bladed tool, and release the compartment lamp.
