Radio Display without Touch Screen (without UDT): Notes

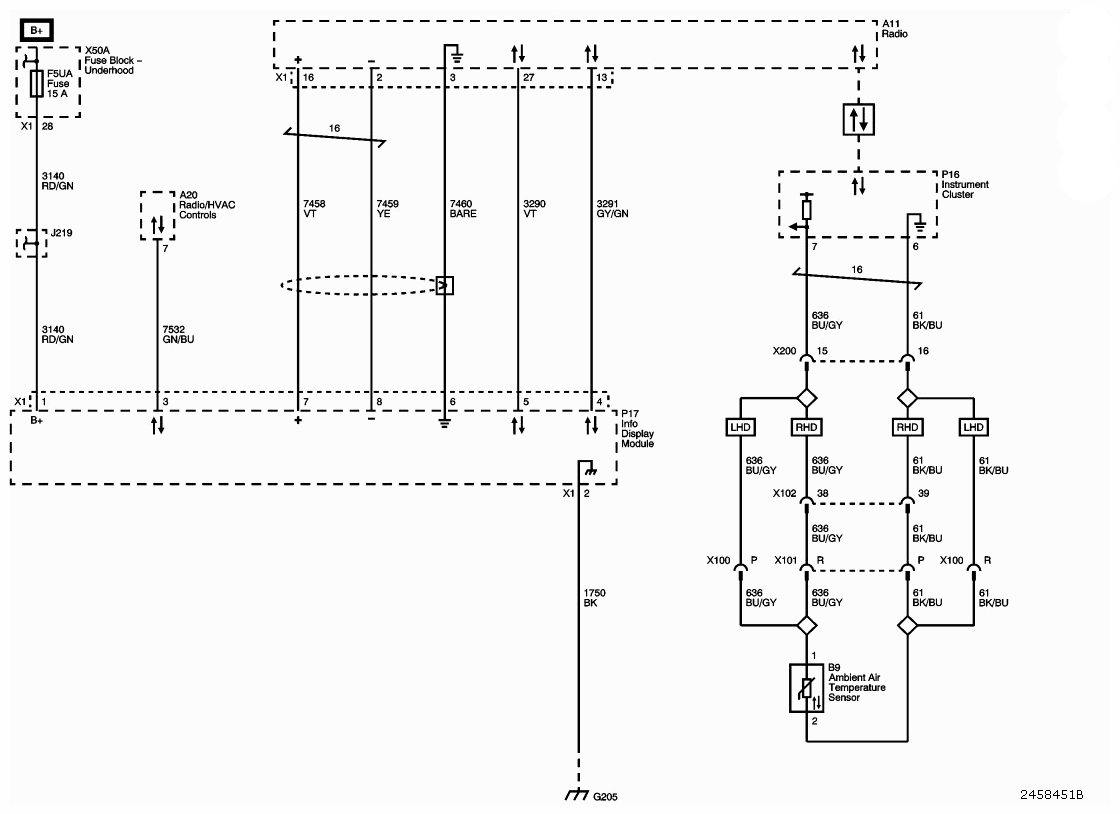

Fig 1: Radio Display Without Touch Screen (Without UDT) - Circuit Diagram

G09437163

Courtesy of SAAB-SCANIA OF AMERICA, INC.
