Driver Information and Ambient Temperature: Notes

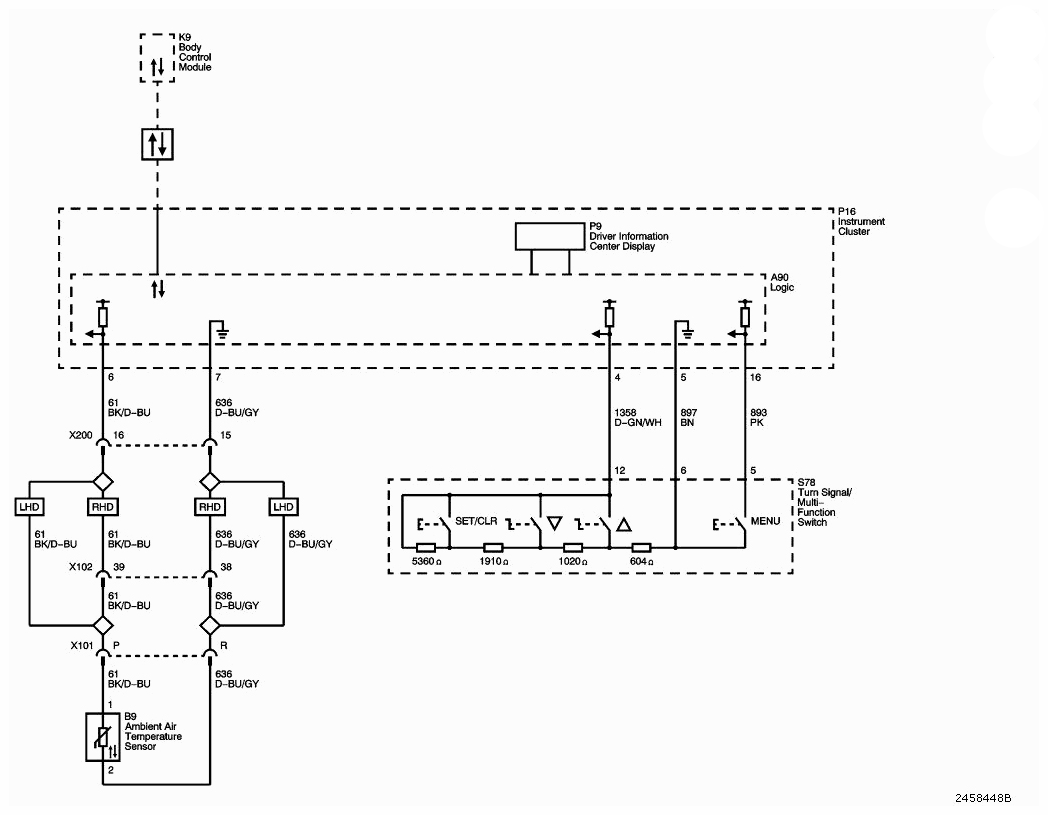

Fig 1: Driver Information And Ambient Temperature - Circuit Diagram

G09437162

Courtesy of SAAB-SCANIA OF AMERICA, INC.
