Supply, ground, serial data, rear sensors and control module (UD5 or UDP): Notes

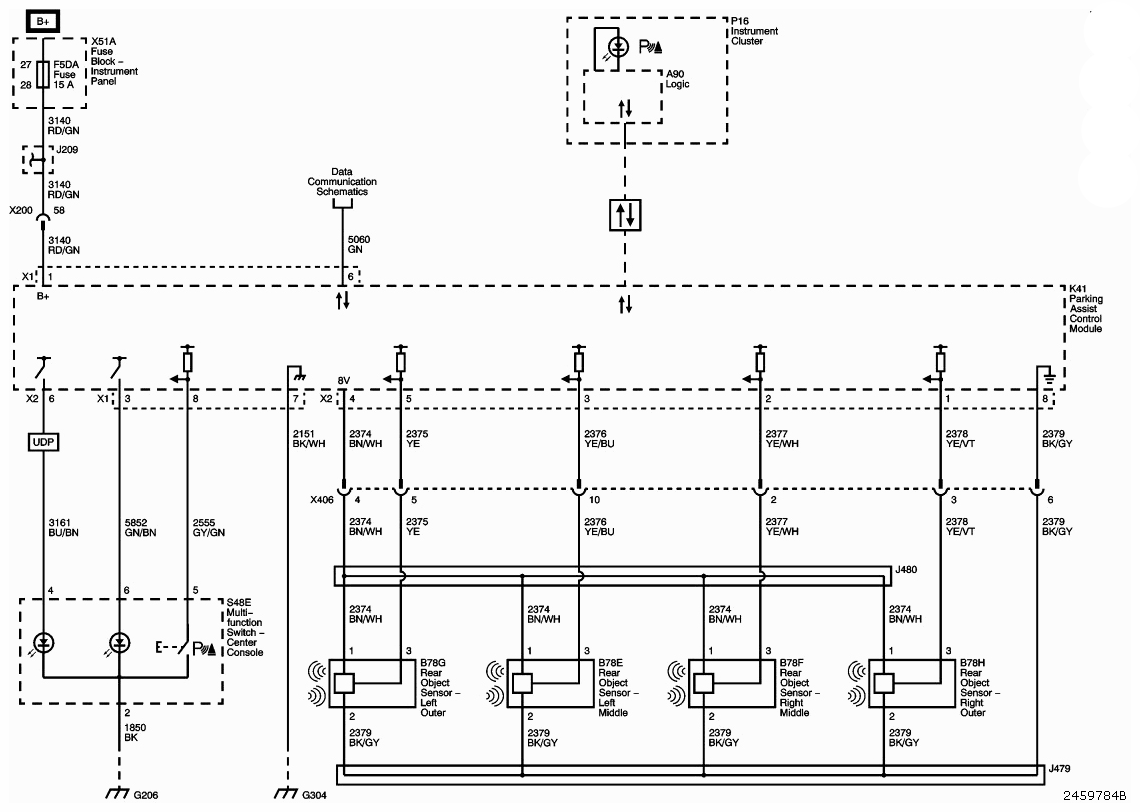

Fig 1: Supply, Ground, Serial Data, Rear Sensors And Control Module - Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
