Home >> Saab >> 2011 >> 9-5 Turbo6 >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Anti-Theft Systems >> Doors And Locks >> Wiring diagram >> Fuel Door and Rear Compartment >> Notes

Fuel Door and Rear Compartment: Notes

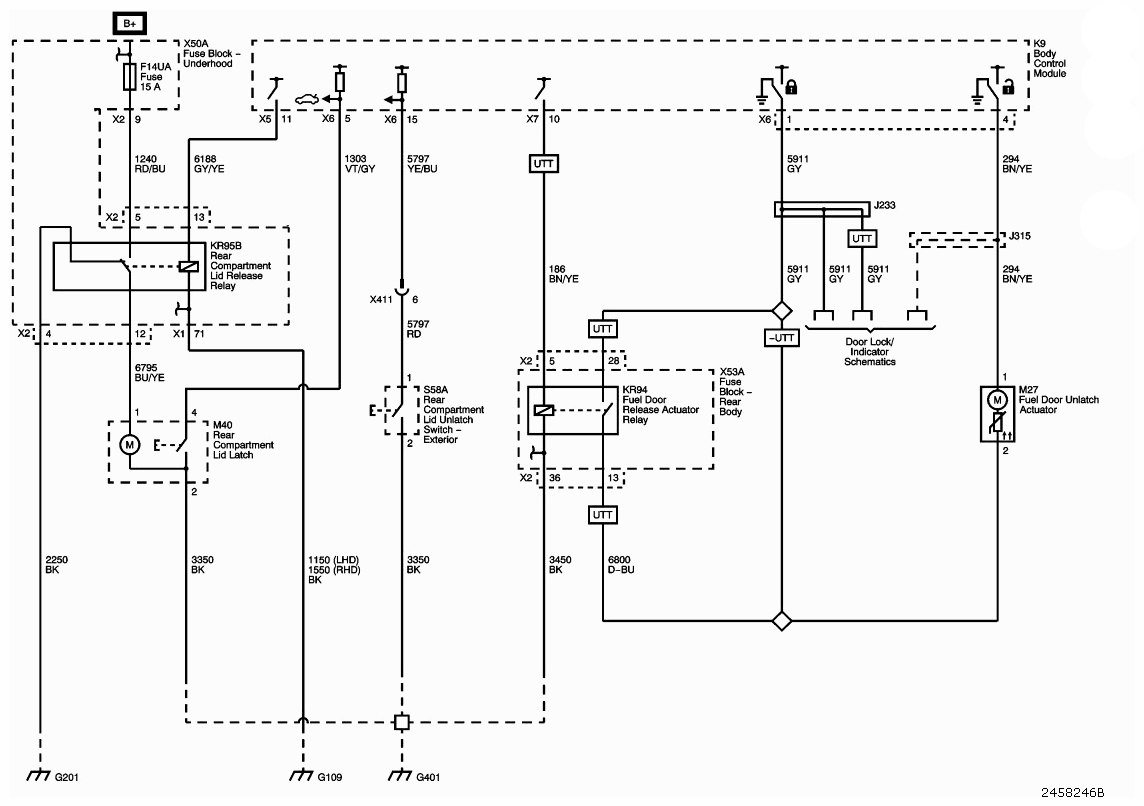

Fig 1: Fuel Door And Rear Compartment - Wiring Diagram

G09435594

Courtesy of SAAB-SCANIA OF AMERICA, INC.
