To remove

  1. Remove the Front bumper shell. See BUMPER SHELL, FRONT .
  2. Remove the Upper radiator member. See UPPER RADIATOR MEMBER .
  3. Remove the upper radiator cover.

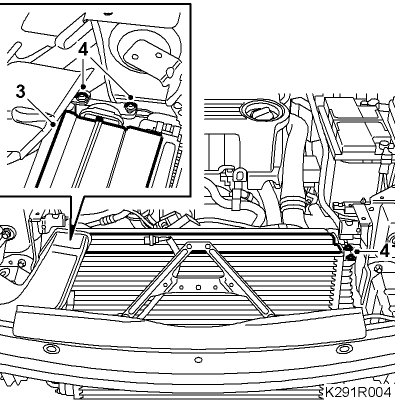

    Fig 1: Illustration For Step 3-4
    G05547281Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the upper bolts of the charge air cooler.
  5. Detach the condenser from the charge air cooler and suspend it with a 83 95 212 Strap.

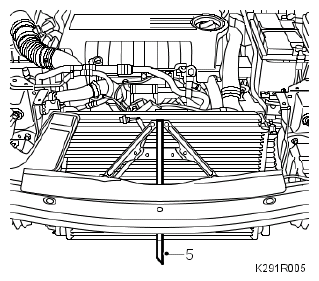

    Fig 2: Identifying Charge Air Cooler Strap And Condenser
    G05547282Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Remove the side covers.
    Fig 3: Identifying Side Covers
    G05547283Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Raise the car.
  8. Detach the hoses from the charge air cooler.
    Fig 4: Illustration For Step 8-9
    G05547284Courtesy of SAAB-SCANIA OF AMERICA, INC.
  9. Remove the bracket for the power steering pipe on the left side.
  10. Remove the charge air cooler by carefully pulling it downwards.
  11. Remove the left stay of the power steering pipe.
