To remove

Carry out actions before removing control module. See Procedures before dismantling the control module .
Remove the front side piece of the floor bracket on the right side.

Fig 1: Illustration For Step 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the air duct and insulation mat

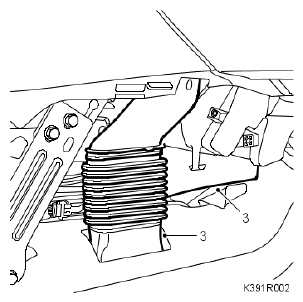

Fig 2: Illustration For Step 3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Unplug the connector.

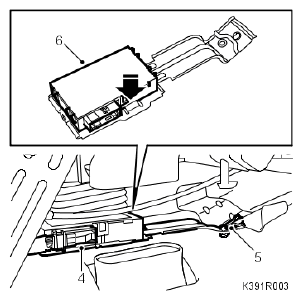

Fig 3: Illustration For Steps 4-6
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the bracket with the unit.
Remove the unit from the bracket.
