To fit

  1. Fit the antenna:
    • Position the antenna (C)
      Fig 1: Illustration For Step 1
      G05057266Courtesy of SAAB-SCANIA OF AMERICA, INC.
    • Plug in the connectors (B)

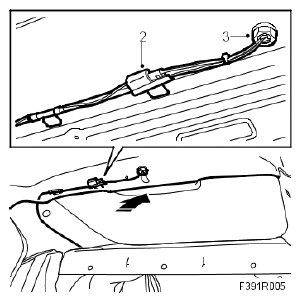

      Fig 2: Illustration For Steps 2 And 3
      G05057267Courtesy of SAAB-SCANIA OF AMERICA, INC.
    • Fit the nut (A) securing the antenna.
  2. Fit the inner roof lining. See HEADLINING, 5D
