To remove

  1. Fit the ACC unit. See ACC UNIT (216) .
  2. Fit the OnStar panel (A), press in the catches (B) and guide out the panel.
    Fig 1: Identifying OnStar Panel And Catches
    G05175938Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Unplug the OnStar panel connector (A).

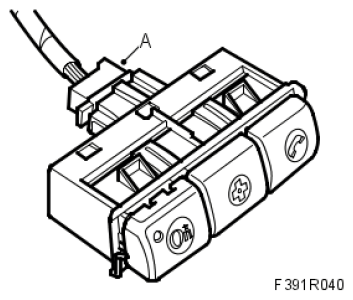

    Fig 2: Identifying OnStar Panel Connector
    G05175939Courtesy of SAAB-SCANIA OF AMERICA, INC.
