To fit

Fit the bracket to the OnStar control module.
Put the OnStar control module in its installation position.

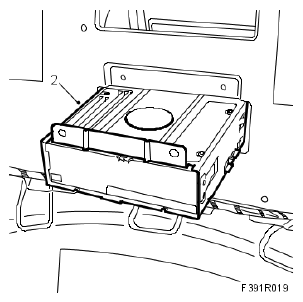

Fig 1: Illustration For Step 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.

IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .
Plug in the connector.

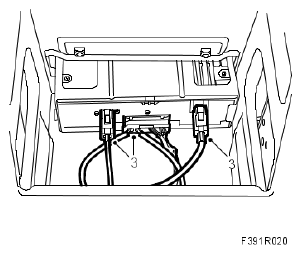

Fig 2: Illustration For Step 3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the bracket screws.

Fig 3: Illustration For Step 4
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the LUGGAGE COMPARTMENT FRONT TRIM, CV .

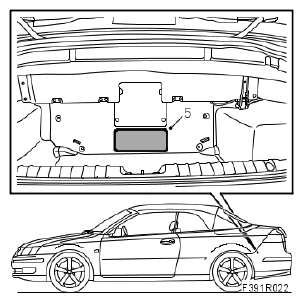

Fig 4: Illustration For Step 5
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Carry out procedures after changing a control module. See Measures after changing the control module .
Carry out reconfiguration of the OnStar-system.
