To fit

  1. Position the OnStar control module.
  2. Plug in the connector.
    IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .
    Fig 1: Installing OnStar Control Module's Cover
    G05057301Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the OnStar control module's cover.
  4. Fit the luggage compartment floor.

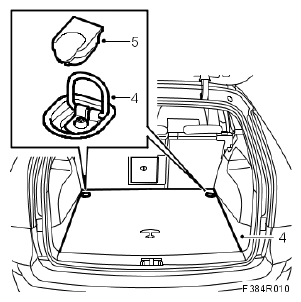

    Fig 2: Illustration For Steps 4 And 5
    G05057286Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Fit the cover.
  6. Carry out Procedure after control module replacement. See Measures after changing the control module .
  7. Carry out reconfiguration  of the OnStar-system.
