To remove

  1. Carry out actions before removing control module. See Procedures before dismantling the control module .
  2. Remove the PARCEL SHELF TRIM .
    Fig 1: Illustration For Step 2
    G05057287Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the screws.

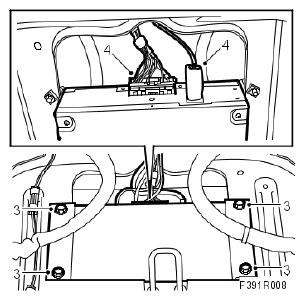

    Fig 2: Illustration For Steps 3 And 4
    G05057288Courtesy of SAAB-SCANIA OF AMERICA, INC.
    IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .
  4. Unplug the connectors.
  5. Lift out the control module.
