To fit

  1. Place the control module in the correct position.
    IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .
  2. Plug in the connector.

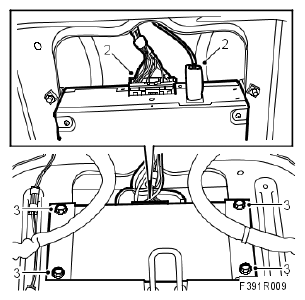

    Fig 1: Illustration For Steps 2 And 3
    G05057289Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the screws.
  4. Fit the PARCEL SHELF TRIM .

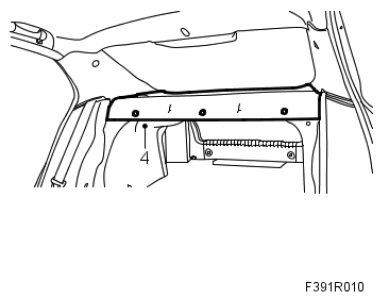

    Fig 2: Illustration For Step 4
    G05057290Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Carry out Procedure after control module replacement. See Measures after changing the control module .
  6. Carry out reconfiguration  of the OnStar-system.
