Home >> Saab >> 2011 >> 9-3X Standard >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Telematics >> Repair Instructions >> Microphone, CV >> To remove

To remove

  1. Remove the trim from the top of the windscreen frame and the A-pillar trim. See A PILLAR TRIM MOULDING, CV .
  2. Remove the microphone by releasing the clip with a screwdriver.

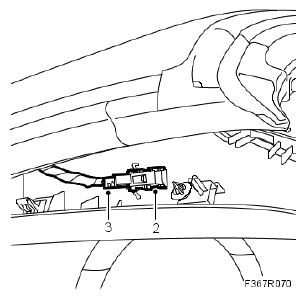

    Fig 1: Illustration For Steps 2 And 3
    G05057303Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Unplug the connector.
