To fit

  1. Plug in the connector.

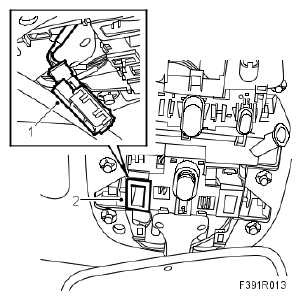

    Fig 1: Illustration For Steps 1 And 2
    G05057307Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the microphone by pressing it into place.
  3. Fit the switch panel cover.
    Fig 2: Illustration For Steps 3 And 4
    G05057308Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the lens cover to the roof lamp.
