To remove
- Carry out actions before removing control module. See Procedures before dismantling the control module .
- Remove CENTRE AIR VENT, PANEL
.

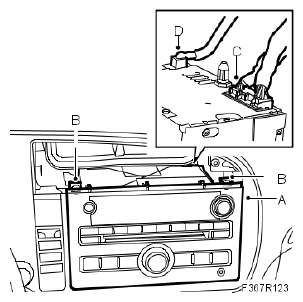

- Remove the radio unit (A):
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Remove the retaining bolts (B)
- Lift out the radio unit (A)
- Unplug the connectors (C) and detach the antenna cable (D).
IMPORTANT:
Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .
