To remove

  1. Carry out Diagnostic procedures before replacing control modules.
  2. Remove OnStar control module (673), 5D , OnStar control module (673), 4D  or OnStar control module (673), CV .
    IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins.
  3. Remove the nuts (A).

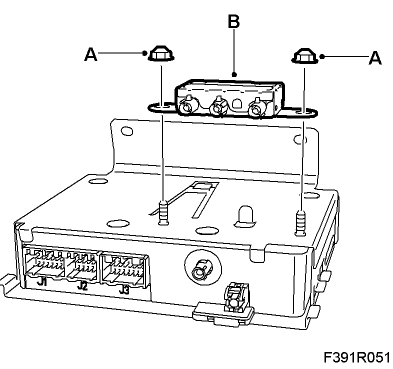

    Fig 1: Removing/Installing Aerial Signal Branching Piece
    G00539152Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Lift out the branching piece for the aerial signal (B).
