To remove

  1. Remove the boot lid trim. See BOOT LID TRIM .
  2. Remove the antenna:

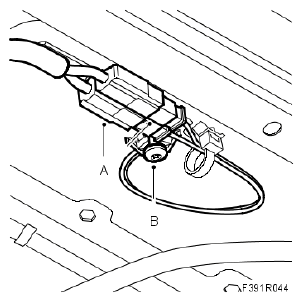

    Fig 1: Illustration For Steps A And B
    G05175954Courtesy of SAAB-SCANIA OF AMERICA, INC.
    • Unplug the connector (A).
    • Remove the bolt (B) and antenna.
