To remove

  1. Remove the BOOT LID TRIM .
  2. Unplug the connectors.

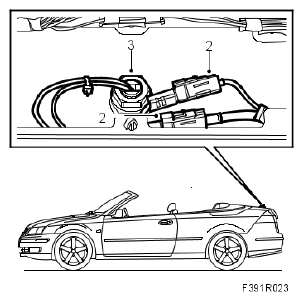

    Fig 1: Illustration For Steps 2 And 3
    G05057273Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the nut and the antenna.
