To fit

  1. Place the antenna in fitting position and fit the nut.

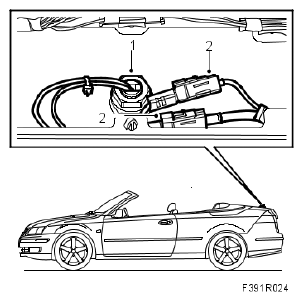

    Fig 1: Illustration For Steps 1 And 2
    G05057274Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Plug in the connector.
  3. Fit the BOOT LID TRIM .
