Power supply, ground and bus communication

PIN NUMBER AND SIGNAL TYPE REFERENCE

Pin No.	Signal type	Description
32	+30
16	Ground
13	I-bus	Bus communication

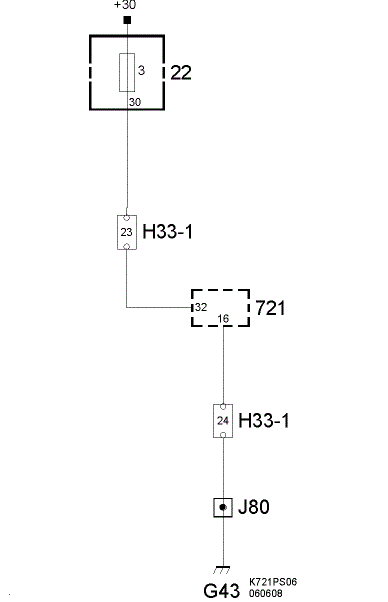

Fig 1: Power Supply, Ground And Bus Communication Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
