Microphone, mobile phone (634): Connection

The microphone is supplied with power on pin 1 and sends an amplified signal on the same pin. Ground is provided on pin 3.

Fig 1: Microphone Connection Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Wiring diagram, UHP/TEL1

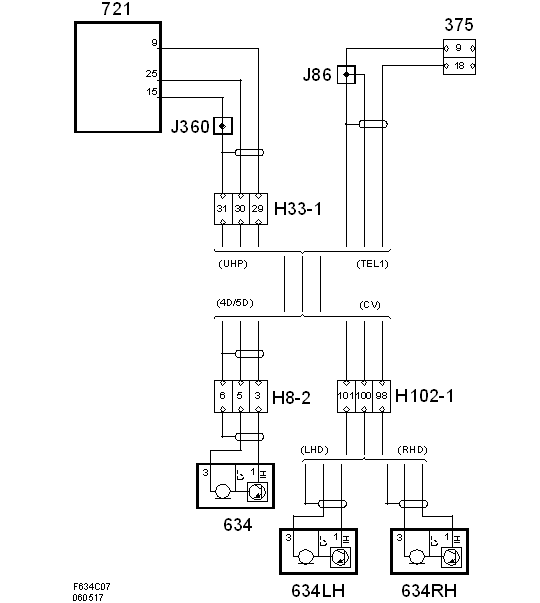

Fig 2: UHP/TEL1 - Wiring Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Wiring diagram, BTN/UHP

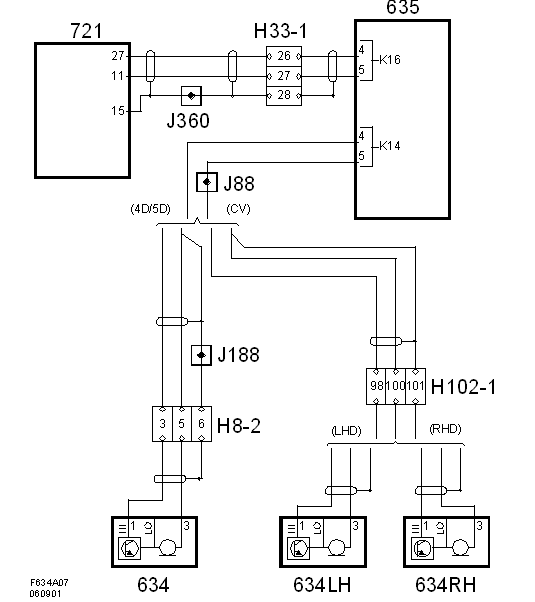

Fig 3: BTN/UHP - Wiring Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Wiring diagram, OnStar

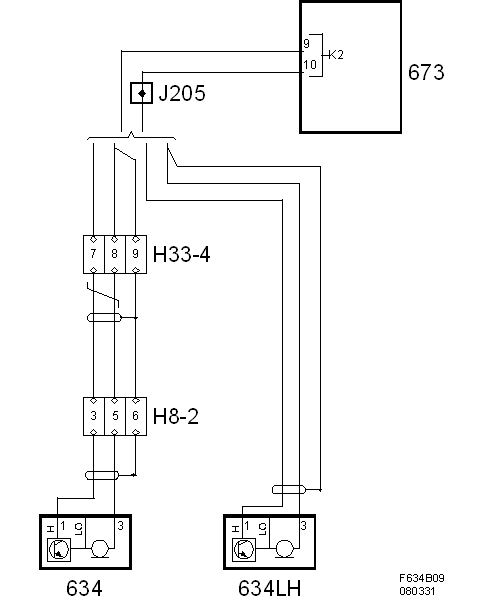

Fig 4: OnStar - Wiring Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
