Main components, Telematics

4D

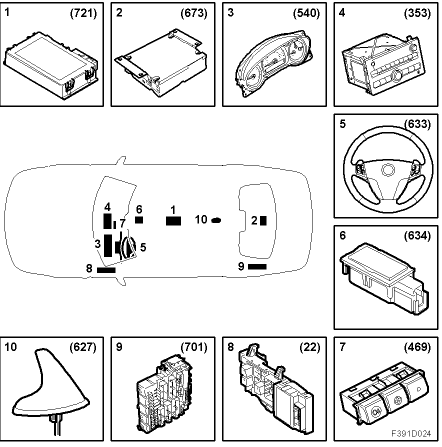

Fig 1: Identifying Telematics Main Components (4D)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

5D

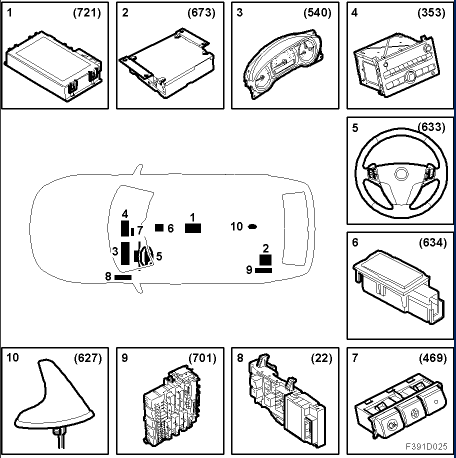

Fig 2: Identifying Telematics Main Components (5D)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

CV

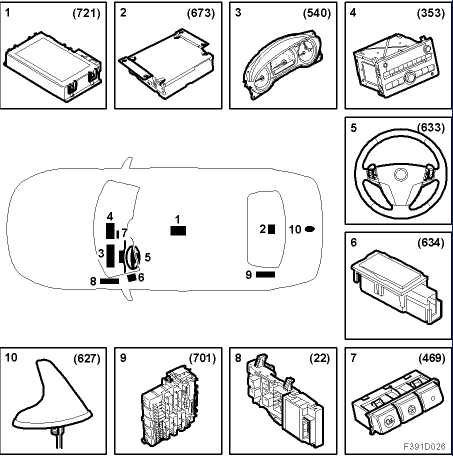

Fig 3: Identifying Telematics Main Components (CV)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. UHP control module (721)
2. OnStar control module (673)
3. Main instrument unit, MIU (540)
4. Entertainment head unit, EHU (353)
5. Steering wheel controls (633)
6. Microphone (634)
7. OnStar control panel (469)
8. Electrical center 22 in the instrument panel (IPEC)
9. Rear electrical center (701)
10. Antenna, GSM/GPS (627)
