Tel 1

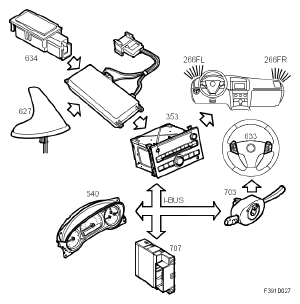

Fig 1: Telephone System Communication Diagram
G05175968Courtesy of SAAB-SCANIA OF AMERICA, INC.

Tel 1 means that the car is prepared for an external mobile telephone connection that is connected to the system via a connector in the dashboard. The roof antenna and antenna cable are factory-mounted. Tel 1 means that the telephone keypad must be used for dialling. The microphone in the roof panel is used for speaking and the car's standard audio system is used as speakers. The volume is adjusted during a call via the steering wheel controls or the volume control of the audio system. The phone is charged automatically.
