Instrument panel electrical center 22 (IPEC): Relays
The electrical center can contain a greater number of relays than those listed below. In such cases, these are not connected to a wiring harness.

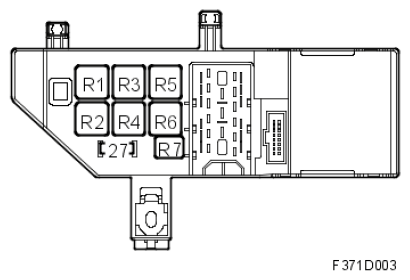

RELAYS REFERENCE CHART
| Location | No | Description |
|---|---|---|
| R1 | 21 | Relay, +54 |
| R2 | 757C | Relay, +15, IPEC |
| R3 | - | |
| R4 | - | |
| R5 | - | |
| R6 | 756 | Relay, accessories |
| R7 | - | |
| Soldered circuit board | 717 | Interior lighting relay |
