To fit

  1. Connect the hoses to the control valve.

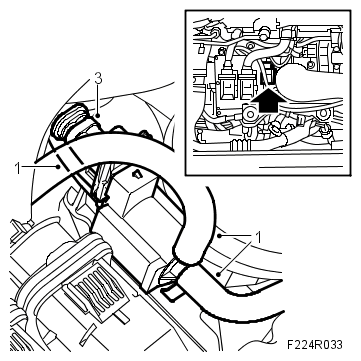

    Fig 1: Illustration For Steps 1 And 3
    G06230328Courtesy of SAAB-SCANIA OF AMERICA, INC.
    1. To inlet pipe
    2. To bypass valve
    3. To temp/pressure on turbocharger delivery pipe
  2. Fit the control valve to the mounting, make sure the hoses are not pinched together and adjust them as necessary.
  3. Plug in the connector.
  4. Replace the upper engine cover.

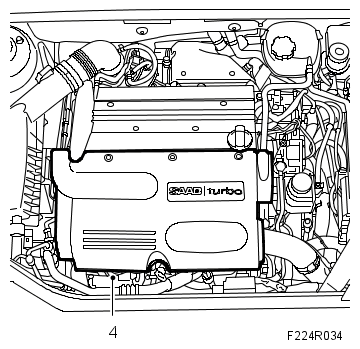

    Fig 2: Identifying Upper Engine Cover
    G06230329Courtesy of SAAB-SCANIA OF AMERICA, INC.
