To fit

Fit the unit to the bracket.

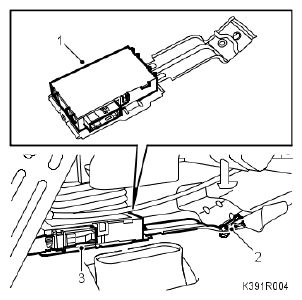

Fig 1: Illustration For Steps 1-3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Refit bracket with the unit.
Plug in the connector.
Fit the insulation mat and the air duct.

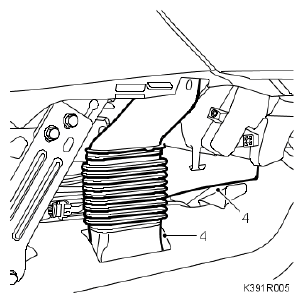

Fig 2: Illustration For Step 4
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the front side piece of the floor bracket on the right side.

Fig 3: Illustration For Step 5
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Carry out Procedure after control module replacement. See Measures after changing the control module .
