To fit

  1. Fit the antenna.
    Fig 1: Identifying Antenna
    G05057266Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Plug in the connector.
    Fig 2: Illustration For Step 2 And 3
    G05057267Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the nut securing the antenna.
  4. Fit the inner roof lining. See HEADLINING .

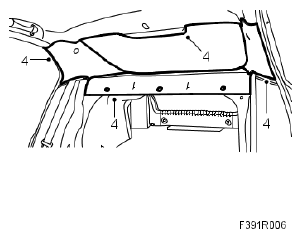

    Fig 3: Illustration For Step 4
    G05057268Courtesy of SAAB-SCANIA OF AMERICA, INC.
