To remove

  1. Remove the phone holder (A) from the floor console's storage compartment by lifting the holder and unhooking the lower hook.

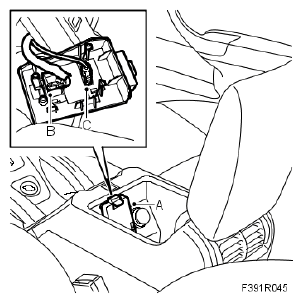

    Fig 1: Illustration For Steps A-C
    G05175962Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Unplug the connector (B) and the antenna connection (C).
