To Remove

  1. Remove the parcel shelf trim (A). See PARCEL SHELF TRIM .

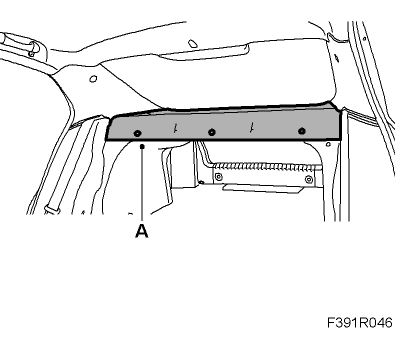

    Fig 1: Removing/Installing Parcel Shelf Trim
    G00539145Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Dismantle the Bluetooth aerial (A).

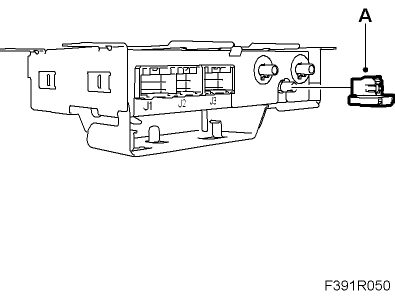

    Fig 2: Removing/Installing Bluetooth Aerial
    G00539146Courtesy of SAAB-SCANIA OF AMERICA, INC.
