To Remove

  1. Remove the cover (A).

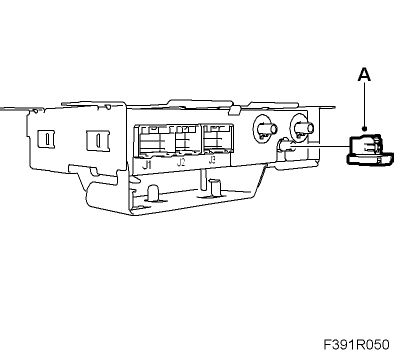

    Fig 1: Removing Cover (A)
    G00539141Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the luggage compartment floor (B).
  3. Dismantle the Bluetooth aerial (A).

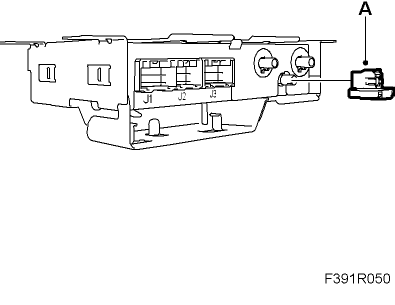

    Fig 2: Dismantling Bluetooth Aerial (A)
    G00539142Courtesy of SAAB-SCANIA OF AMERICA, INC.
