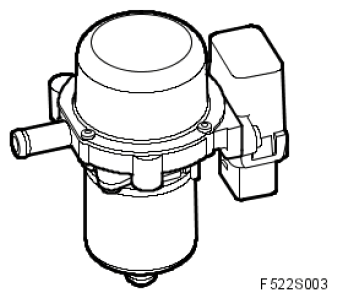

Vacuum pump, electric
Courtesy of SAAB-SCANIA OF AMERICA, INC. VACUUM PUMP, ELECTRIC REFERENCE
| Make |
Hella |
| Type |
UP28 |
| Press after ≤ 5 seconds |
mbar |
500 |
| Press after ≤ 10.5 seconds |
mbar |
300 |
| Resistance |
ohm |
181 ±10% |
| Operating voltage |
V |
12 |
| Current consumption |
A |
≤ 11 |
