VIN plate, brake caliper and brake discs
VIN PLATE EXPLANATION REFERENCE
| Pos. | Explanation |
|---|---|
| 7 | Brake discs, front |
| 8 | Brake discs, rear |
| 9 | Brake caliper, front |
| 10 | Brake caliper, rear |

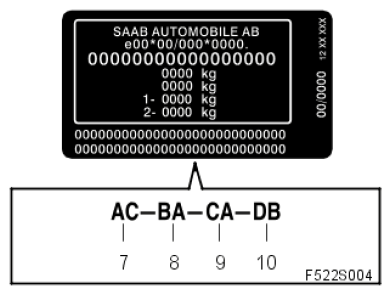

On the bottom of the VIN plate there is a row of characters that describe which brake calipers and brake discs the car is equipped with.
If all or parts of the code are missing contact your importer. The importer contacts Product Improvement Process (PIP) or Parts Assistance Centre (PAC), who compile the details in question and order a new plate.
