To fit

  1. Check that the o-ring is in the proper position.

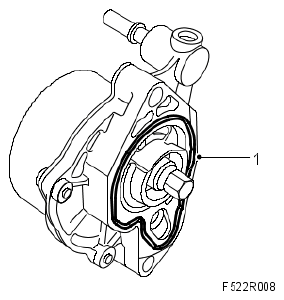

    Fig 1: Identifying O-Ring
    G05061413Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the pump and the IDM bracket.

    Tightening torque: 24 Nm (18 lbf ft)

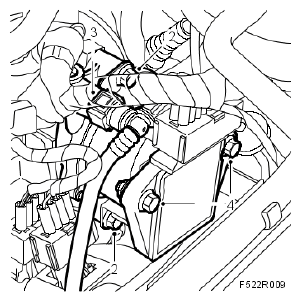

    Fig 2: Illustration For Steps 2-4
    G05061414Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the vacuum hose.
  4. Fit the IDM.
  5. Check for leaks between the pump and cylinder head.
  6. Check brake function.
