To remove

WARNING: The turbocharger can be hot and great care must be observed.
  1. Pump the brake pedal until the vacuum is removed from the brake servo.
  2. Remove the pipe from the T-nipple on the vacuum pipe.
    Fig 1: Identifying T-Nipple On Vacuum Pipe
    G05061447Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Aut:  Remove the gear cable clips from the pipe.

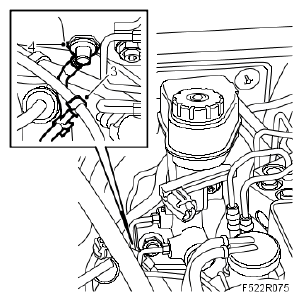

    Fig 2: Identifying Gear Cable Clips
    G05061448Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the pipe from the brake servo.
