To fit

  1. Fit the pipe to the brake servo.

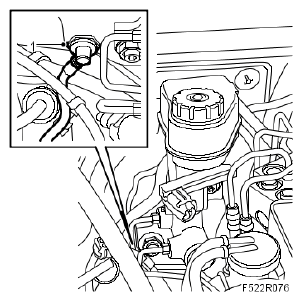

    Fig 1: Identifying Brake Servo Pipe
    G05061449Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the pipe to the T-nipple on the vacuum pump.
    Fig 2: Identifying T-Nipple On Vacuum Pump
    G05061450Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Aut:  Fit the gear cable clips.

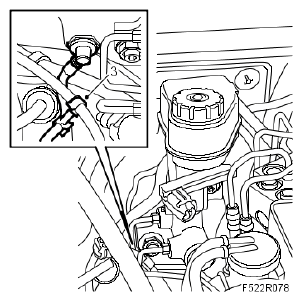

    Fig 3: Identifying Gear Cable Clips
    G05061451Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Connect an exhaust extractor.
  5. Start the engine and check the operation of the brake servo.
