To fit

  1. Lubricate the pad sliding and contact surfaces with Special paste.
    Fig 1: Locating Pad Sliding And Contact Surfaces
    G05061370Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the brake pads.

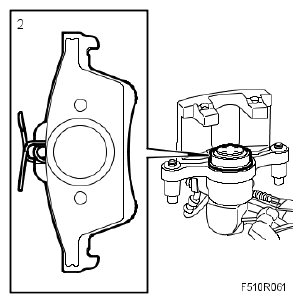

    Fig 2: Fitting Brake Pads
    G05061371Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the hydraulic body.

    Tightening torque 28 Nm (21 lbf ft)

    Fit the protective covers.

    Fig 3: Illustration For Steps 3-4
    G05061372Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the retaining spring to the brake caliper.
  5. Fit the wheel.
  6. Lower the car.
  7. Press the brake pedal a few times to press out the brake pistons and the handbrake adjustment.
  8. Check the brake fluid level and top up as necessary.
  9. Check the operation of the foot brake and handbrake.
