To fit

NOTE: When changing the pedal bracket, the following parts must be removed from the spare part:

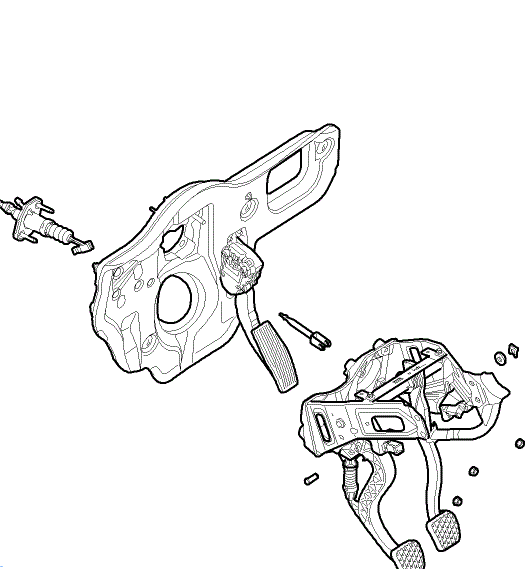

Fig 1: Identifying Pedal Bracket, Brake Pedal Pushrod And Accelerator Pedal

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fit the pedal bracket to the bulkhead.
Tightening torque 20 Nm (14 lbf ft)

Fig 2: Identifying Pedal Bracket Bulkhead
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Manual gearbox: Connect the pushrod to the clutch pedal. Fit the nuts to the clutch master cylinder. Pull out the adjusting rod from the self-adjusting cruise control switch and press it back with the clutch pedal for correct adjustment.
Tightening torque 20 Nm (14 lbf ft)

Fig 3: Connecting Pushrod To Clutch Pedal
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the brake servo bolts.
Tightening torque 20 Nm (14 lbf ft)

Fig 4: Identifying Brake Servo Bolts
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the brake pedal link bolt.

Fig 5: Identifying Brake Pedal Link Bolt
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Adjust the pedal switches. Depress the brake pedal and pull out the adjusting rod from the self-adjusting pedal switches.
Fit the STEERING WHEEL MEMBER .
