To remove

  1. Open the bonnet.
  2. Fit the wing cover onto the left-hand front wing.
  3. B207/A20NFT/LHU:  Unplug the connector (A) for the coolant's level sensor.

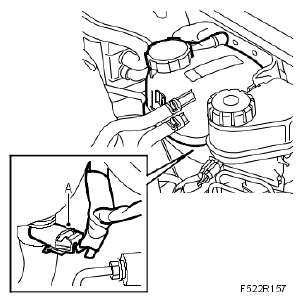

    Fig 1: Identifying Coolant's Level Sensor Connector
    G05061548Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Unplug the connector (A) for the sensor unit, combustion (CDM).
    Fig 2: Identifying Sensor Unit, Combustion (CDM) Connector
    G05061549Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Undo the coolant reservoir from the bulkhead and lift it up.
  6. Unplug the connector (A) for the brake fluid reservoir's level sensor.
    Fig 3: Identifying Brake Fluid Reservoir's Level Sensor Connector
    G05061551Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Remove the level sensor from the brake fluid reservoir.
