To fit

Fit the brake caliper holder (A) to the steering swivel member. Apply threadlock using Loctite 242.
Tightening torque 210 Nm +30° Nm (155 lbf ft +30°)

Ill: Same as Remove, point 7
Fit the outer brake pad.
Cut off the cable tie and align the hydraulic body. Fit the guide pins (D) and protective covers (C).
Tightening torque: 28 Nm (21 lbf ft)

Fig 1: Identifying Guide Pins And Protective Covers
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the retaining spring to the brake caliper:
- Level 1, 2 and 4: Align the outer contact surfaces against the bracket and press the center of the clip (A).

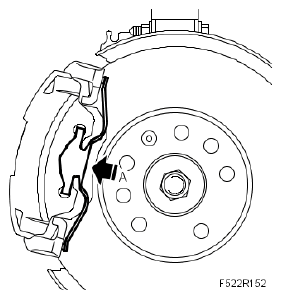

  Fig 2: Pressing Centre Of Clip
  Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Level 3: Position the spring at the top and center, and then press in at the bottom (B). Check that the locking lugs (C) align correctly.

  Fig 3: Illustration For Steps B-C
  Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the wheel.
Lower the car.
Depress the brake pedal repeatedly in order to press out the brake pistons.
