To remove

  1. Raise the car.
  2. Remove the wheel.
  3. Remove the retaining spring from the brake caliper by prying with a screw driver while pressing the flat part of the spring.
    WARNING: Hold the retaining spring plate when removing the spring so that it can be loosened slowly. The spring can otherwise fly off with great force.

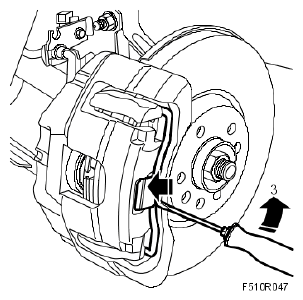

    Fig 1: Removing Retaining Spring From Brake Caliper Using Screwdriver
    G05061347Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Press in the piston by prying with a screwdriver between the brake disc and brake caliper.
    Fig 2: Illustration For Steps 4 And 7-8
    G05061348Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Depress the brake pedal slightly using a brake pedal clamp.
  6. Remove FUSE 6 from instrument panel electrical center 22.
  7. Detach the brake hose. Plug the hose and the caliper.
  8. Remove the protective covers and the hydraulic body guide pins and lift off the body.
  9. Remove the inner brake pad from the body and the outer brake pad from the bracket.
