To remove

  1. Raise the car and remove the wheel.
  2. Press in the piston.
    • Levels 1, 2 and 4:  Prise against the brake pad with a screwdriver.
      Fig 1: Illustration For Steps 2-3
      G05061352Courtesy of SAAB-SCANIA OF AMERICA, INC.
    • Level 3:  Prise between the brake disc and the brake caliper using a screwdriver.
      Fig 2: Illustration For Steps 2-3
      G05061353Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the two brake caliper retaining bolts.
    NOTE: Make sure the cable to the wheel sensor is not damaged.
  4. Suspend the brake caliper from the spring strut.

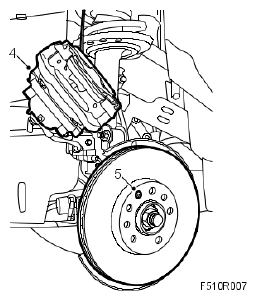

    Fig 3: Identifying Brake Caliper And Brake Disc Locking Screw
    G05061354Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Remove the brake disc locking screw.
  6. Lift off the brake disc.
