To fit

  1. Clean the new brake disc.
  2. Clean all the contact surfaces between the hub and the brake disc.
  3. Place the brake disc on the hub and screw in the brake disc locking screw.

    Tightening torque 7 Nm (5 lbf ft)

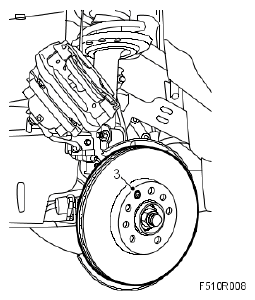

    Fig 1: Identifying Brake Disc Locking Screw
    G05061355Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the brake caliper. Secure the bolts with 74 96 268 Thread locking adhesive.

    Tightening torque: 210 Nm +30° (155 lbf ft +30°)

    Fig 2: Identifying Brake Caliper Bolts
    G05061356Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Fit the wheel.
  6. Lower the car and press the brake pedal to press out the brake pads.
  7. Test drive the car and check the operation of the brakes.
