To remove

  1. Put on 82 93 706 Wing cover.
  2. Remove HYDRAULIC UNIT, TCS/ESP .
  3. Remove Master cylinder .
  4. Remove SOUND INSULATION PANEL, DRIVER .
  5. Remove brake pedal link bolt.
    Fig 1: Identifying Brake Pedal Link Bolt
    G05061439Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Place a jack underneath the engine. Undo the bolts on the left engine mounting to lower the engine about 20 mm.
  7. Detach the vacuum hose from the brake servo.

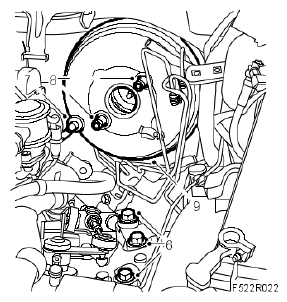

    Fig 2: Illustration For Steps 6-9
    G05061440Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Remove the brake servo bolts.
  9. Remove the brake servo from the bulkhead.
